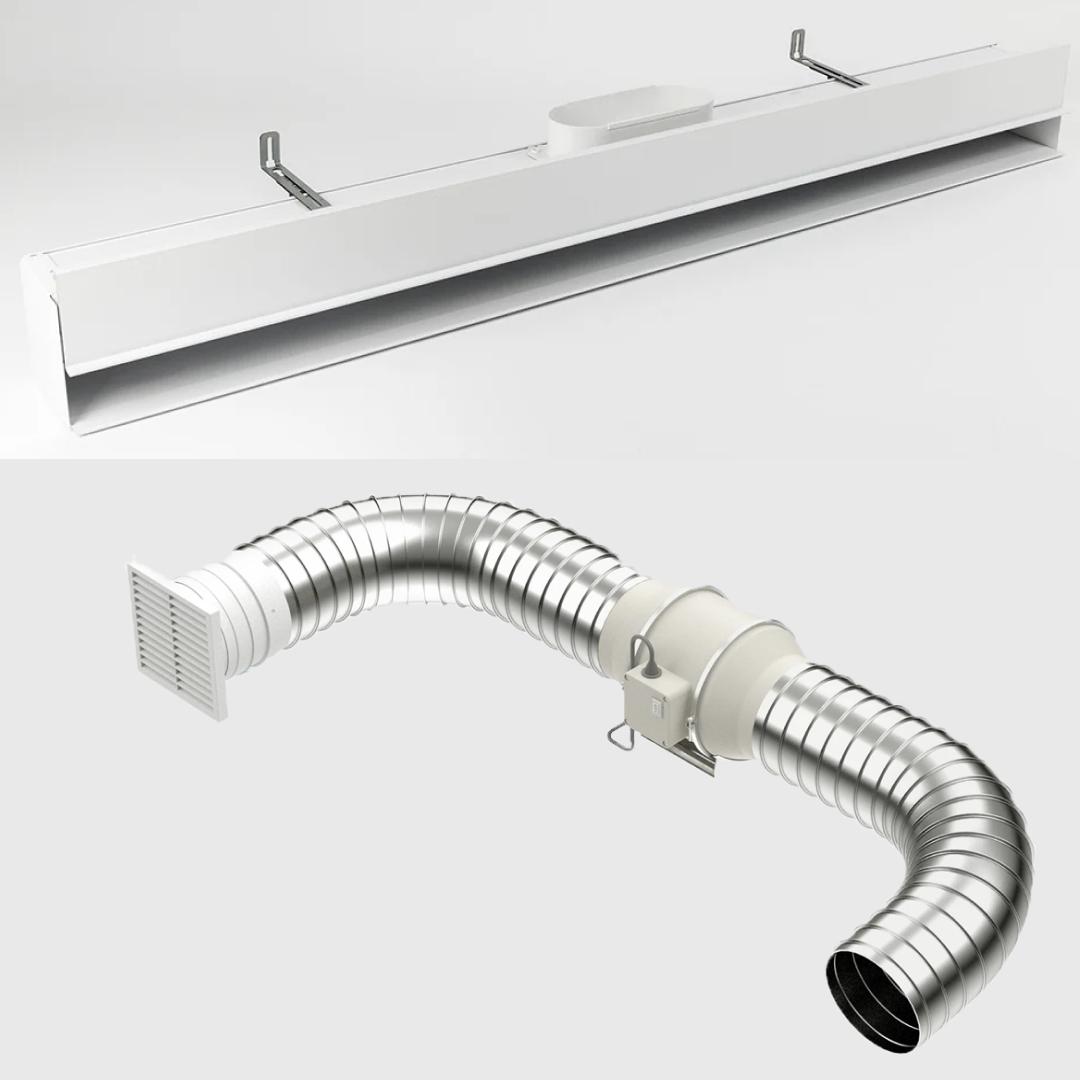

The Shadowline Diffuser Pro is a concealed internal grille that allows air to be channelled through a ventilation system. Designed to blend seamlessly with it's interior application, the grille can be positioned at the wall/ceiling junction offering a near invisible vent, or positioned in the ceiling offering a flangeless slot detail. Made from a custom aluminium extrusion, it has been engineered for maximum performance and ease of installation whilst offering a discreet architectural alternative to traditional ceiling grilles.

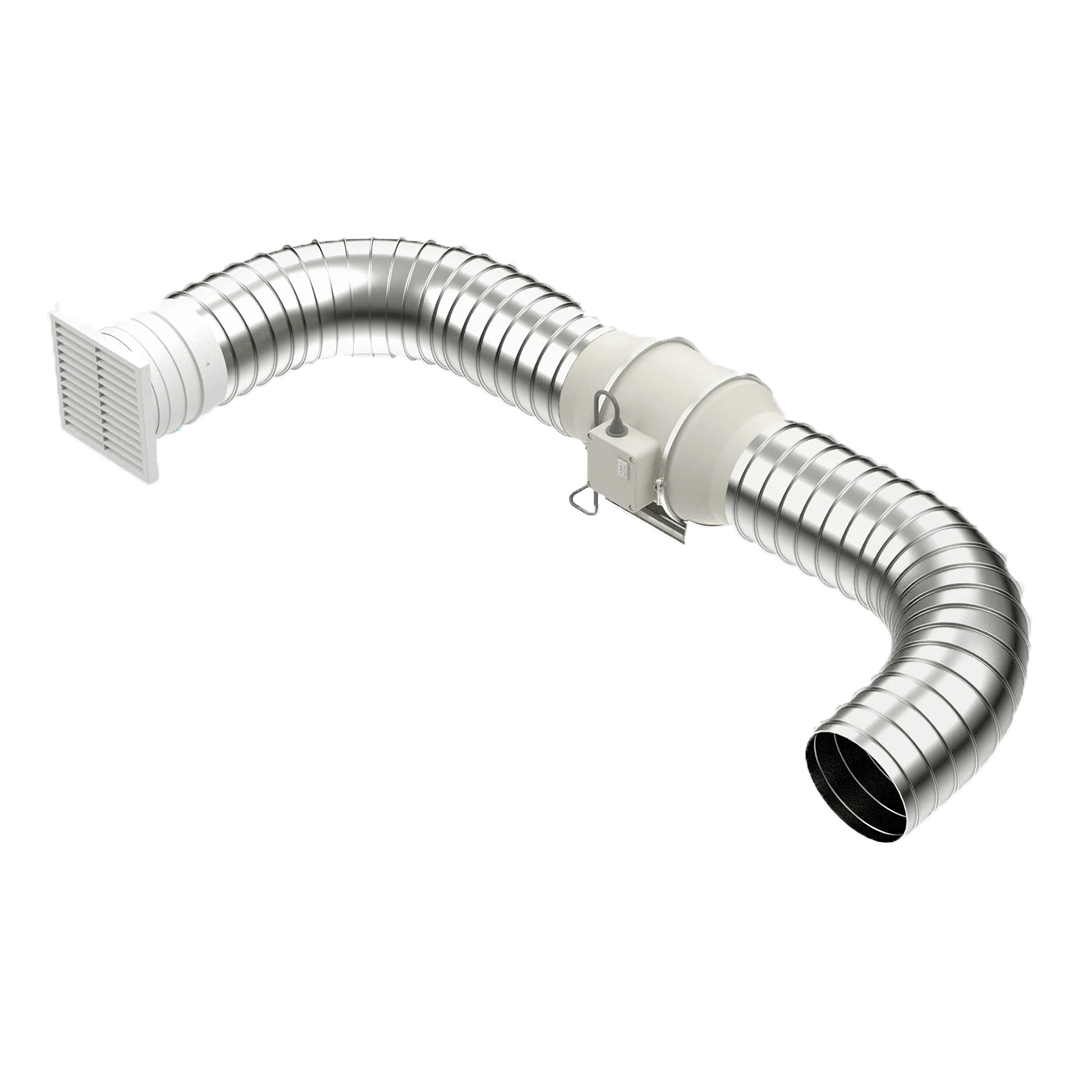

The Standard Exhaust Kit by Expella contains all the components needed for effective single point inline ventilation. The kit includes the compact EMF150 Inline fan which offers a quiet and powerful air extraction solution perfect for ventilating bathrooms, laundries and sub floor spaces.

Features:

• Creates a unique Shadowline detail between the wall and ceiling whilst making the ventilation system invisible
• Aluminum profile designed to optimise air flow, improve efficiency and reduce air turbulence and noise
• Suitable for use with inline ventilation and is adaptable for air conditioning systems
• Modular design that can be cut or extended to any length to suit varying wall and ceiling sizes
• Easy to install with adjustable clip-in brackets for multiple fixing options, compatible with Rondo suspended ceilings
• Low profile restricted ceiling space
• Configurable duct spigot position, orientation and quality

Includes:

• 1x EMF150 Inline mixed flow exhaust fan with quick clip bracket
• 1x Back Draft Damper, Plastic 150mm
• 1x 6m Length  Duct - Uninsulated 4 Zero Flex 150mm
• 1x External Grille - Half Chevron Grille Plastic 150mm
• 1x 4m Length Tape - Reinforced Acrylic Foil 75mm
• Shadowline Diffuser Pro Components
• 1x Spigot for 150mm Duct
• 2x Joiners (to join additional Shadowline Pro Diffusers)
• 2x End Caps
• Brackets, Screws and Fixings
