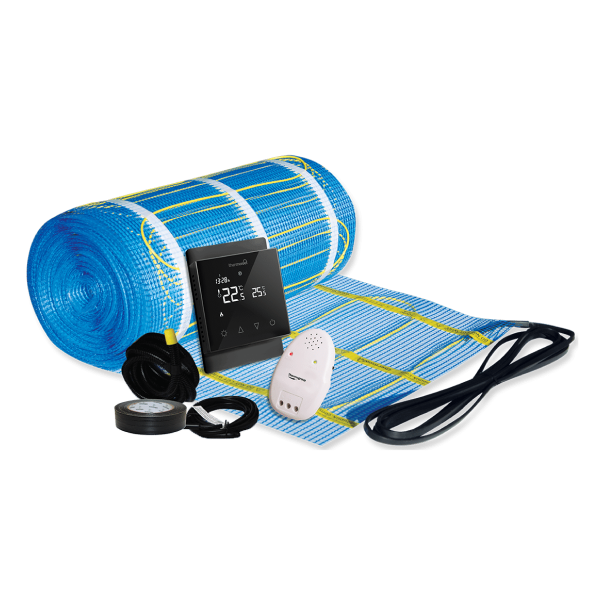

The Thermonet matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating.

Kit items include:

• Thermonet 150W/m² Mat
• Programmable Thermostat (5226A)
• Floor Temperature Sensor
• Sensor Conduit
• Fixing Tape
• Cable Monitor (6025) and Installation Guide and Warranty Form

Technical Features:

• Width - 500mm
• Heated Width - 430mm
• Thickness - 3.5mm
• Maximum Temperature* - 28°C *
• Protection Rating - IP68
• Warranty - Lifetime on heating mat and 3 years on thermostat
• Voltage - 240Volt
• Wattage - 150W/m²
• Conductor Type - Single Ended
• Cold Tail Length - 5m
• Output - 900W
• Resistance - 59Ω

Thermonet features 3.5mm TwistedTwin cable, self-adhesive mesh and our low-profile cold tail connection cable. These features make up what we call LayFlat Technology because this combination neutralises tension in the finished product and makes Thermonet easier to fit.

Thermonet underfloor heating cables have a tough fluoropolymer coating on the outside and internal conductors, a continuous armoured earth sheath and multi-shrand twin conductors.

The conductors as twisted together to eliminate electromagnetic field (EMF) and neutralise the stress, expansion and contractions of the cable along the entire length; resulting in a more robust longer lasting cable.
