Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU
Model: HydroTap G5 Classic · SKU: H51704Z03AU
Commercial Tap
$9,167 AUD $10,633 AUD
Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU
1 of 5 images
  • Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU
  • Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU
  • Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU

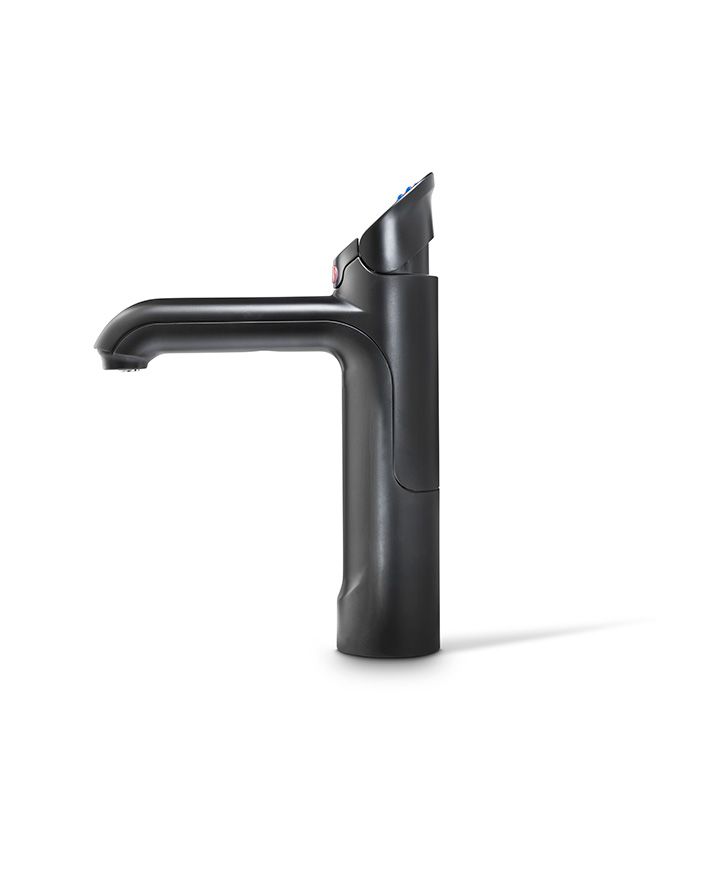

  • Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU — profile view
  • Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU — installation dimensions and clearances
Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU
Boiling & Chilled

HydroTap G5 Classic

Matte Black · Hob Mounted

  • 3yrparts & labour warranty
  • 395×487×333under bench unit (mm)
  • Hob Mountedinstallation

Zip HydroTap Boiling, Chilled, Filtered water tap features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including 2 boiling water safety modes, 3 energy saving modes including ON/OFF timers and sensor activated 'sleek when it's dark', 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration. Easy to install integrated ventilation tray included.

Features

Water & filtration

  • Boiling and Chilled Water Modes
  • Boiling Cups Per Hour: 160
  • Chilled Cups Per Hour: 175
  • Water Pressure: Minimum 170 kPa - Maximum 700 kPa
  • Water Connection: 1/2" BSP (G1/2)

Design & use

  • 60 Person Capacity
  • Matte Black Colour Finish
  • Zip HydroTap Classic Style
  • Power Rating: 2.1kW 220-240V 50Hz
  • Power Supply: 1 x 10 Amp Socket Outlet

Will it fit?

The tap sits on the bench; the chiller unit lives in the cabinet below and needs clearance for airflow and servicing.

395 × 487 × 333 mm under bench unit (W × D × H)

5-year parts & labour when installed by a Zip Certified Installer for residential use. Otherwise 3 years parts & labour, plus 5 years on internal tanks.

Full specification sheet (PDF)
Zip Commercial HydroTap G5 Classic Boiling & Chilled Tap 160/175 - Matte Black H51704Z03AU installation layout and clearances
Installation layout — HydroTap G5 Classic

Product Specifications

Application Location Kitchen
Installation Type Hob Mounted
Model Name HydroTap G5 Classic
Product Type Filtered Water, Boiling & Chilled Taps
Range HydroTap
Style Classic
Warranty Years 3 years
Under Bench Unit 395 mm (W) × 487 mm (D) × 333 mm (H)
Product Colours Finishes Matte Black

Technical Documents

Specification Sheet

View PDF
