Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU
Model: HydroTap G5 Classic Plus · SKU: H55703Z11AU
Commercial Tap
$8,597 AUD $9,779 AUD
Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU
1 of 4 images

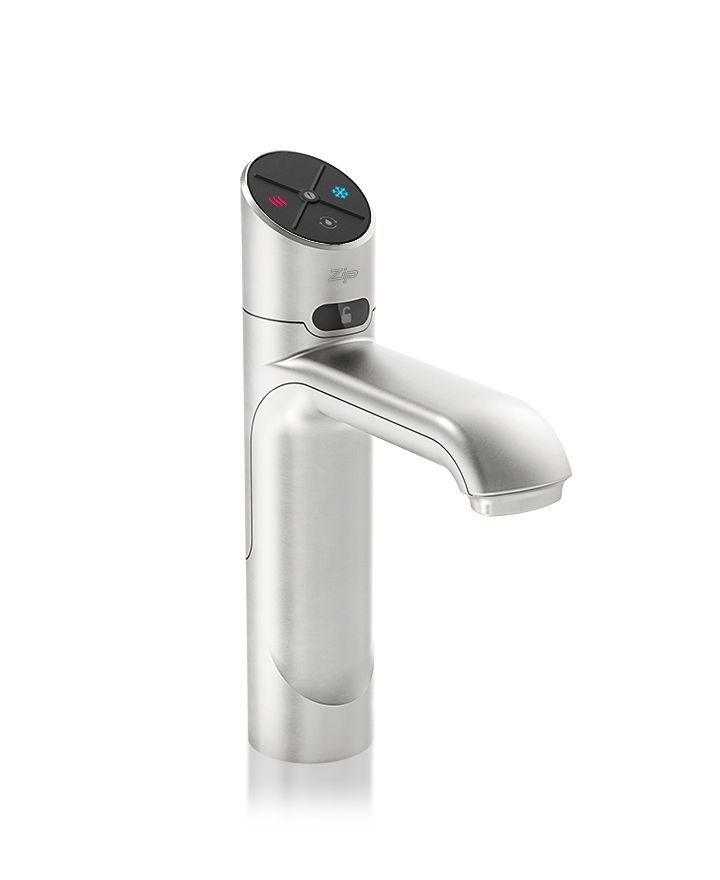

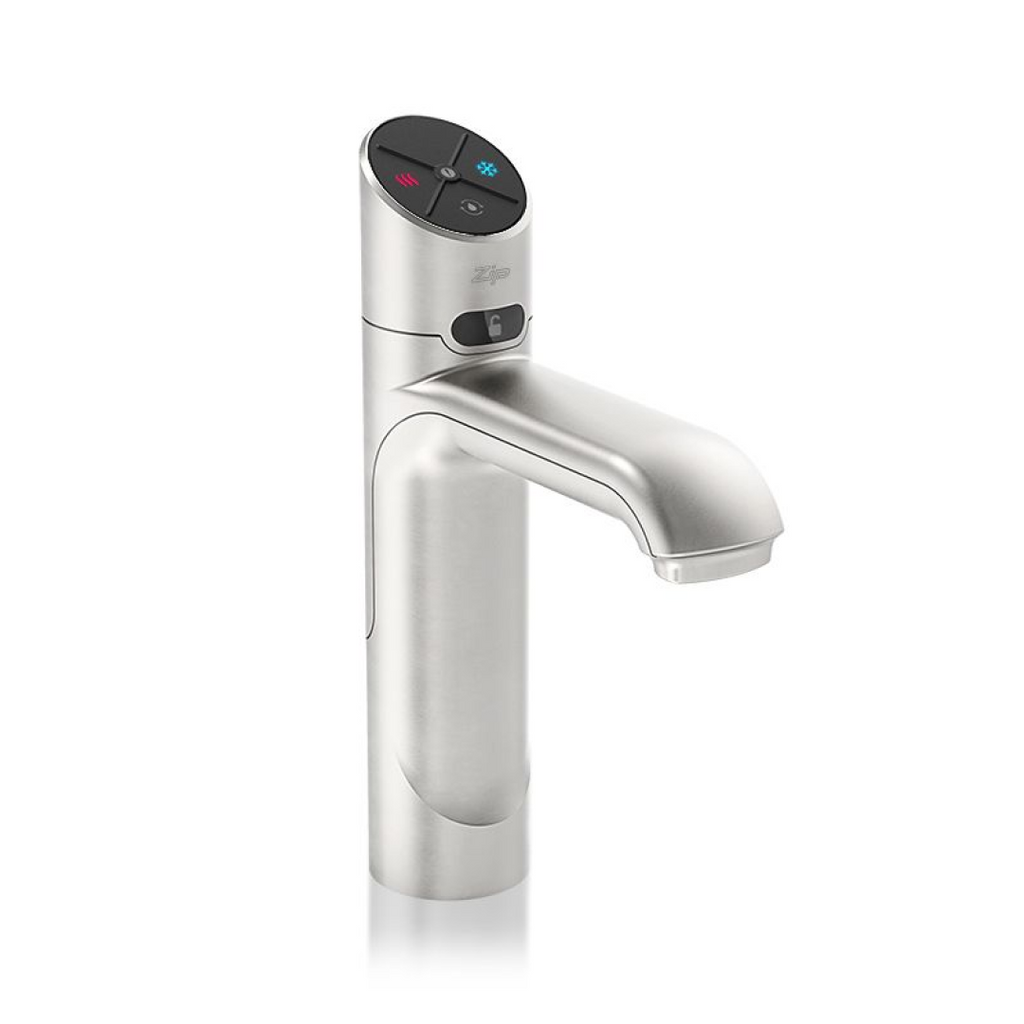

  • Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU
  • Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU
  • Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU — installation dimensions and clearances

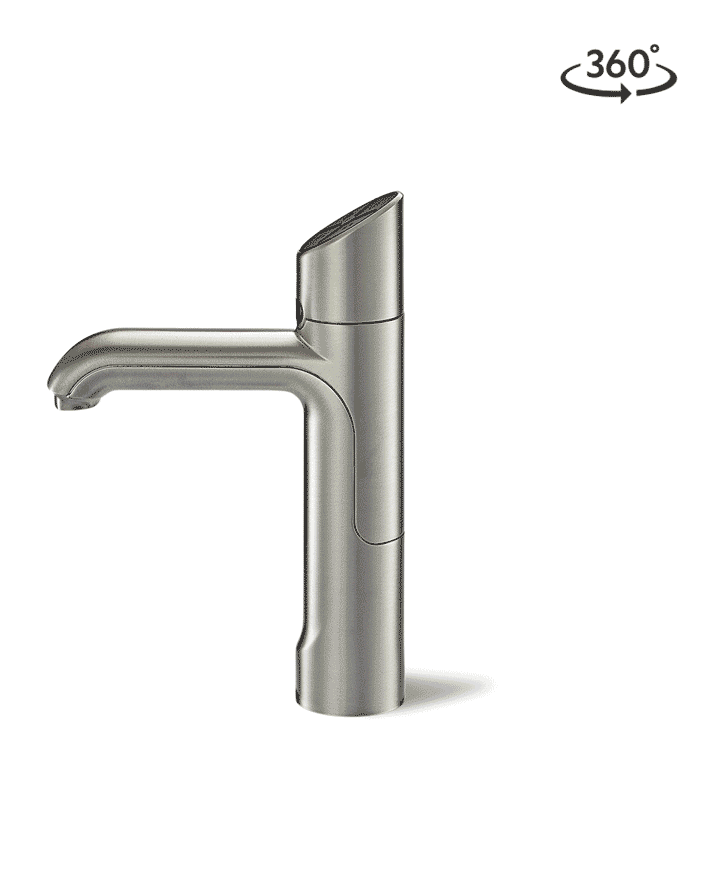

  • Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU — 360° view
Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU
Boiling & Chilled

HydroTap G5 Classic Plus

Brushed Nickel · Hob Mounted

  • 3yrparts & labour warranty
  • 395×487×333under bench unit (mm)
  • Hob Mountedinstallation

Zip HydroTap G5 Classic Plus Boiling, Chilled, Filtered water tap features simple, intuitive controls including continuous flow to fill bottles, Boiling water safety lock, and antimicrobial protection impregnated within the new Classic Plus touch-pad for enhanced hygiene. The water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including 2 boiling water safety modes, 3 energy saving modes including ON/OFF timers and sensor activated 'sleep when it's dark', 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration. Easy to install integrated ventilation tray included.

Features

Water & filtration

  • Boiling and Chilled Water Modes
  • Boiling Cups Per Hour: 160
  • Chilled Cups Per Hour: 125
  • Water Connection: 1/2" BSP (G1/2)
  • Water Pressure: Minimum 170 kPa - Maximum 700kPa
  • Water Valves: Integrated 500kPa Pressure Limiting Valve and Dual Check Valve

Design & use

  • Brushed Nickel Colour Finish
  • 40 Person Capacity
  • Power Rating: 1.97kW 220-240V 50Hz
  • Power Supply: 1 x 10 Amp Socket Outlet
  • 5 Years Warranty (Appliance Warranty 36 Months + 24 Months Tank Warranty)

Will it fit?

The tap sits on the bench; the chiller unit lives in the cabinet below and needs clearance for airflow and servicing.

395 × 487 × 333 mm under bench unit (W × D × H)

5-year parts & labour when installed by a Zip Certified Installer for residential use. Otherwise 3 years parts & labour, plus 5 years on internal tanks.

Full specification sheet (PDF)

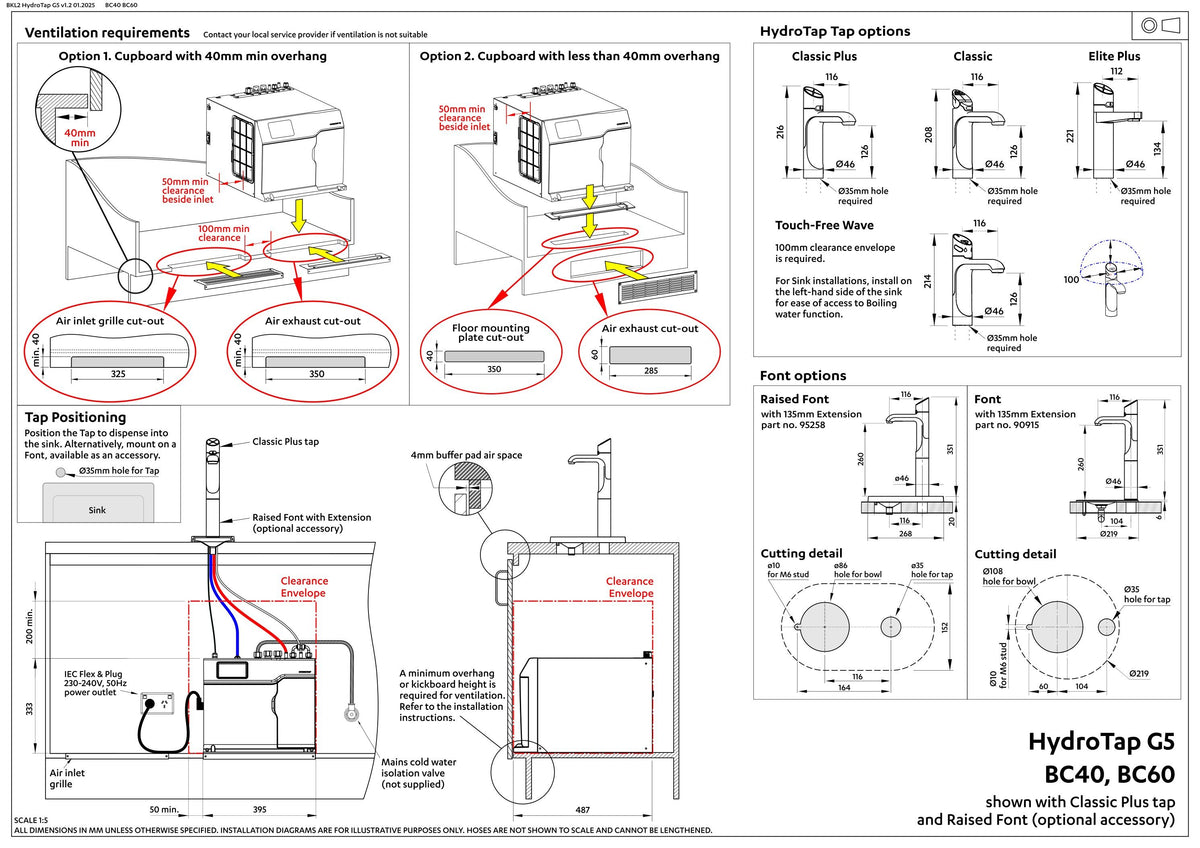

Zip Commercial Hydrotap G5 Classic Plus Boiling & Chilled Tap 160/125 - Brushed Nickel H55703Z11AU installation layout and clearances
Installation layout — HydroTap G5 Classic Plus

Product Specifications

Application Location Kitchen
Installation Type Hob Mounted
Model Name HydroTap G5 Classic Plus
Product Type Filtered Water, Boiling & Chilled Taps
Range HydroTap
Style Classic Plus
Warranty Years 3 years
Spout Reach 235 mm
Under Bench Unit 395 mm (W) × 487 mm (D) × 333 mm (H)
Product Colours Finishes Brushed Nickel
