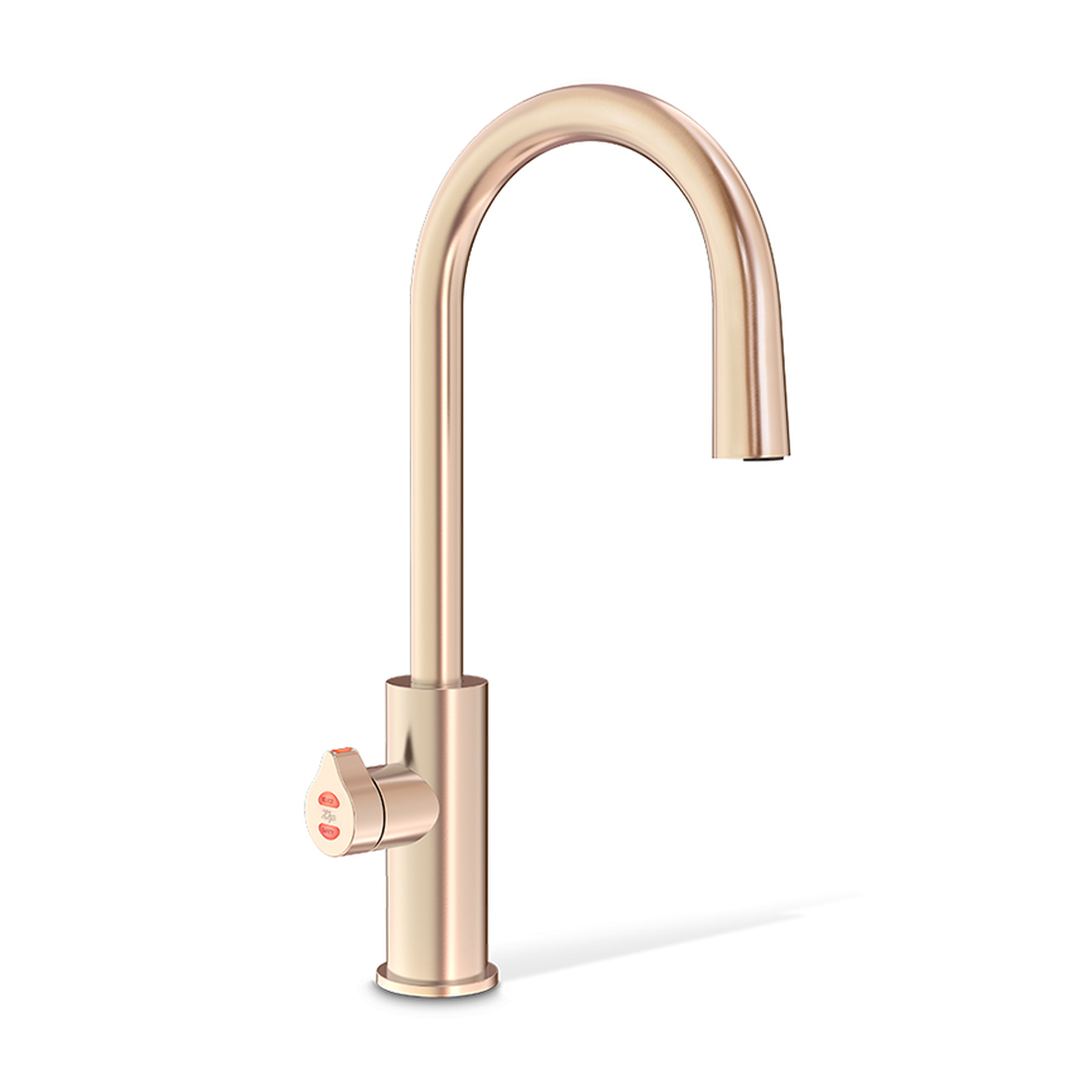

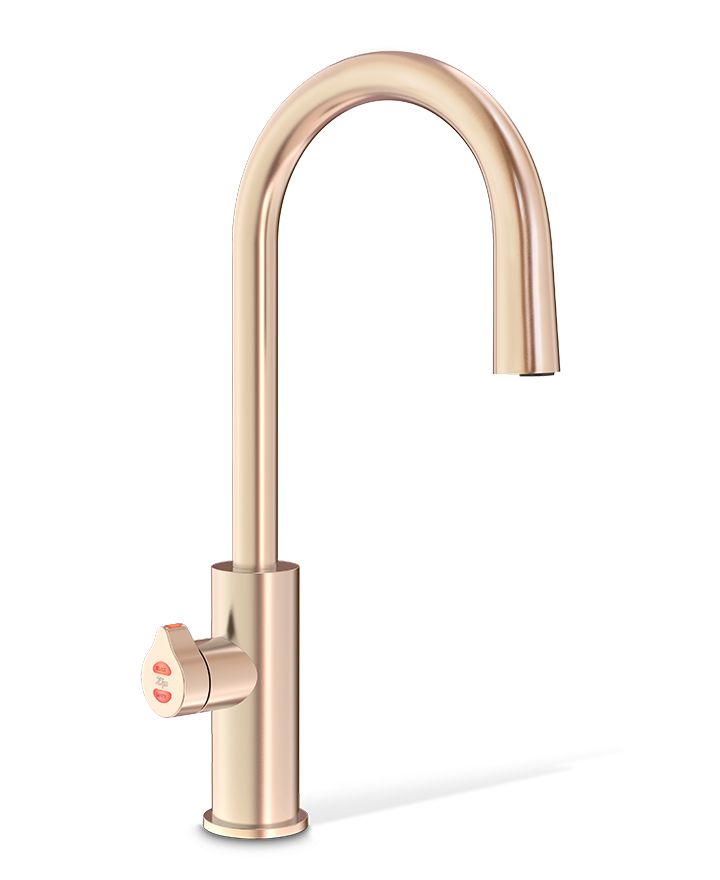

Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU
Model: HydroTap G5 Arc Plus · SKU: H5L785Z05AU
$3,289 AUD $4,195 AUD
Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU
1 of 7 images
  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU
  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU
  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU
  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU

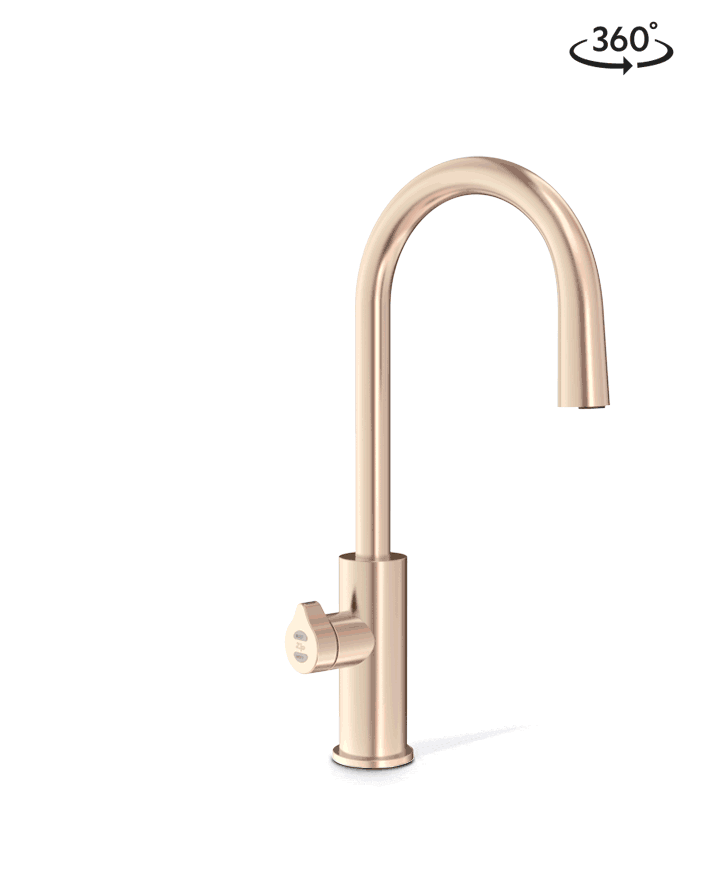

  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU — 360° view

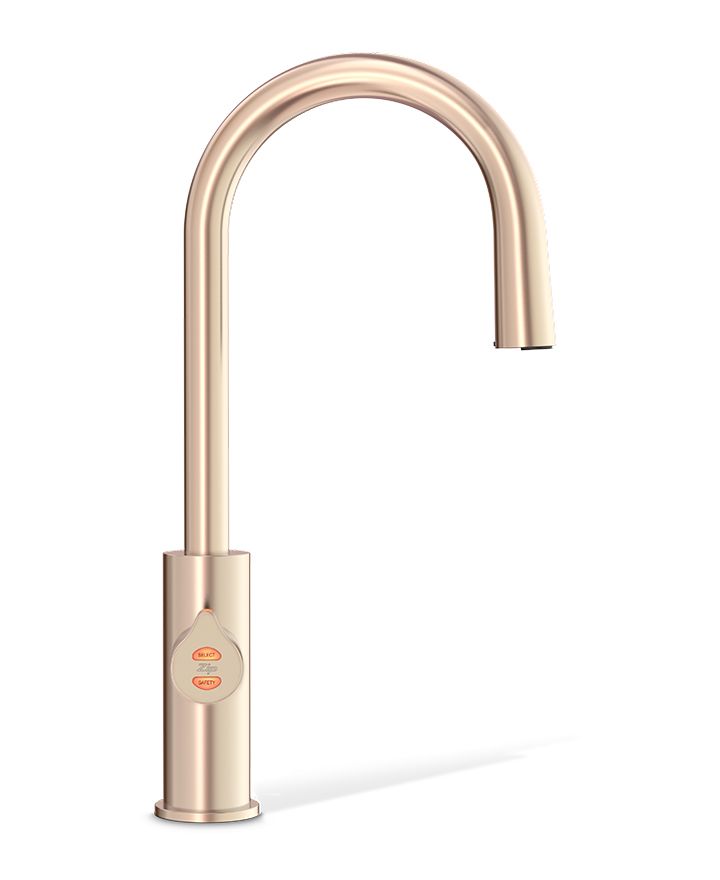

  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU — profile view

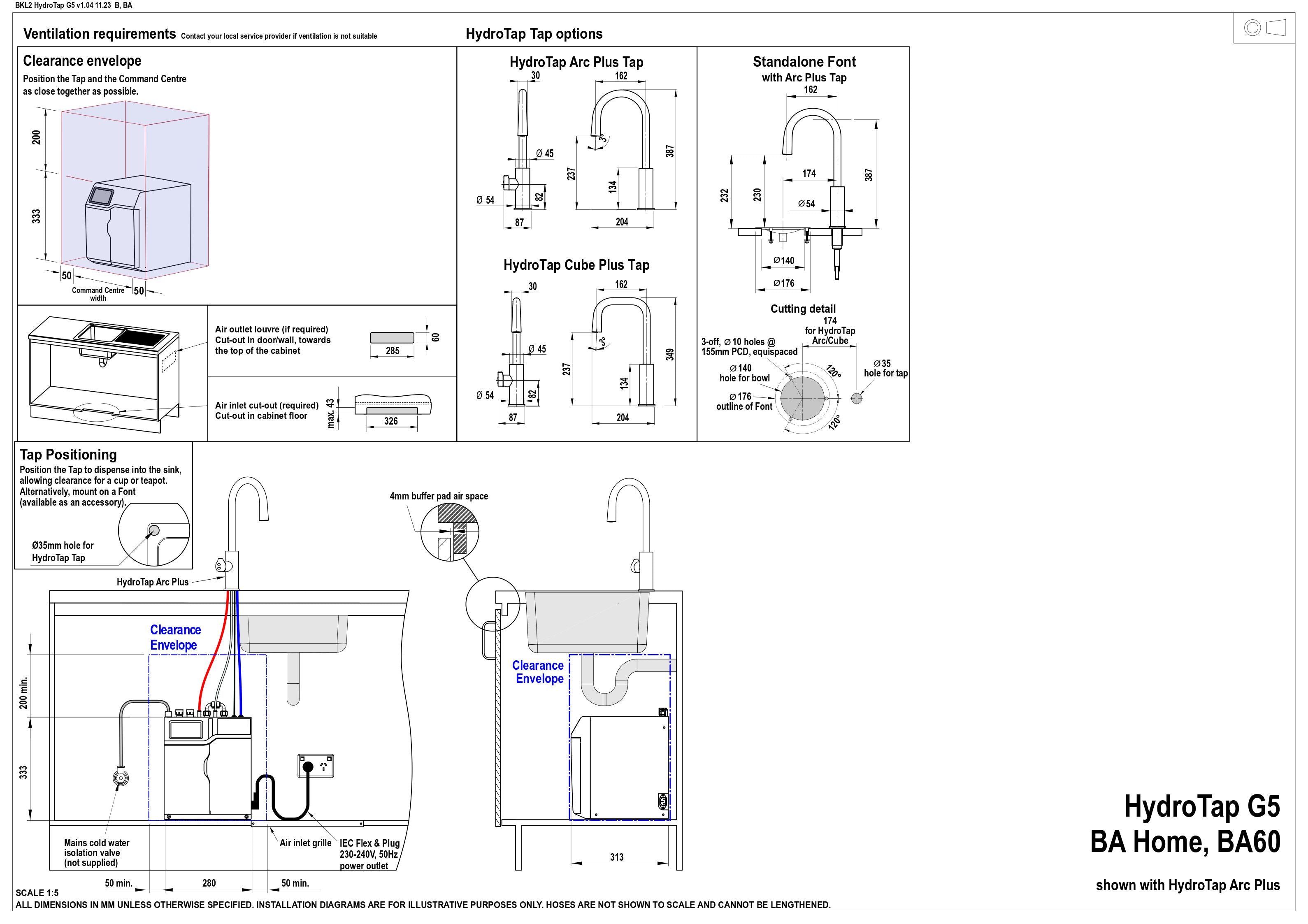

  • Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU — installation dimensions and clearances
Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU
Boiling & Ambient

HydroTap G5 Arc Plus

Brushed Rose Gold · Hob Mounted

  • 3yrparts & labour warranty
  • 280×313×333under bench unit (mm)
  • Hob Mountedinstallation

The Zip Hydrotap G5 Arc Plus Boiling & Ambient - Gold H5L785Z05AU (also available in Rose Gold) is a sleek and stylish water system that provides boiling, ambient, and filtered water at your fingertips. Its modern design is perfect for contemporary kitchens and offices, and its advanced features make it an efficient and convenient solution for hydration needs.

Features

Water & filtration

  • Boiling, ambient, and filtered water: Provides instant access to boiling and ambient water, as well as filtered water for drinking.

Safety & hygiene

  • Single under bench command centre: Features a touch screen display with customisable settings, boiling water safety mode, and SteriTouch® antimicrobial protection for enhanced hygiene.
  • SteriTouch® antimicrobial protection: The touch screen display and key water paths are impregnated with antimicrobial protection for added hygiene and safety.

Energy & efficiency

  • Energy saving modes: Includes ON/OFF timers and a 2-hour sleep mode for improved energy efficiency.

Design & use

  • Sleek design: The Zip Hydrotap G5 Arc Plus features a modern, stylish design that is perfect for contemporary kitchens and offices.
  • Rose Gold or Gold finish: Available in Rose Gold or Gold finish, the Zip Hydrotap G5 Arc Plus adds a touch of luxury to any space.

Will it fit?

The tap sits on the bench; the chiller unit lives in the cabinet below and needs clearance for airflow and servicing.

280 × 313 × 333 mm under bench unit (W × D × H)

5-year parts & labour when installed by a Zip Certified Installer for residential use. Otherwise 3 years parts & labour, plus 5 years on internal tanks.

Full specification sheet (PDF)

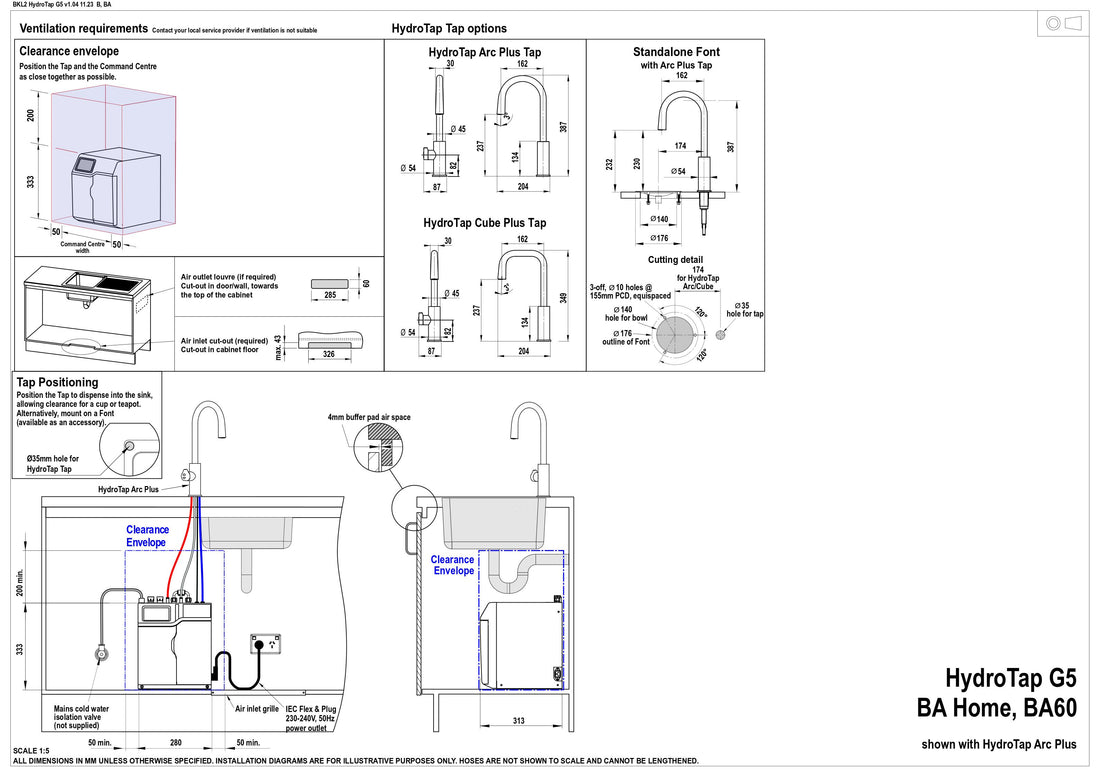

Zip Hydrotap G5 Arc Plus Boiling & Ambient - Brushed Rose Gold H5L785Z05AU installation layout and clearances
Installation layout — HydroTap G5 Arc Plus

Product Specifications

Application Location Kitchen
Installation Type Hob Mounted
Model Name HydroTap G5 Arc Plus
Product Type Filtered Water, Boiling & Ambient Taps
Range HydroTap
Style Arc Plus
Warranty Years 3 years

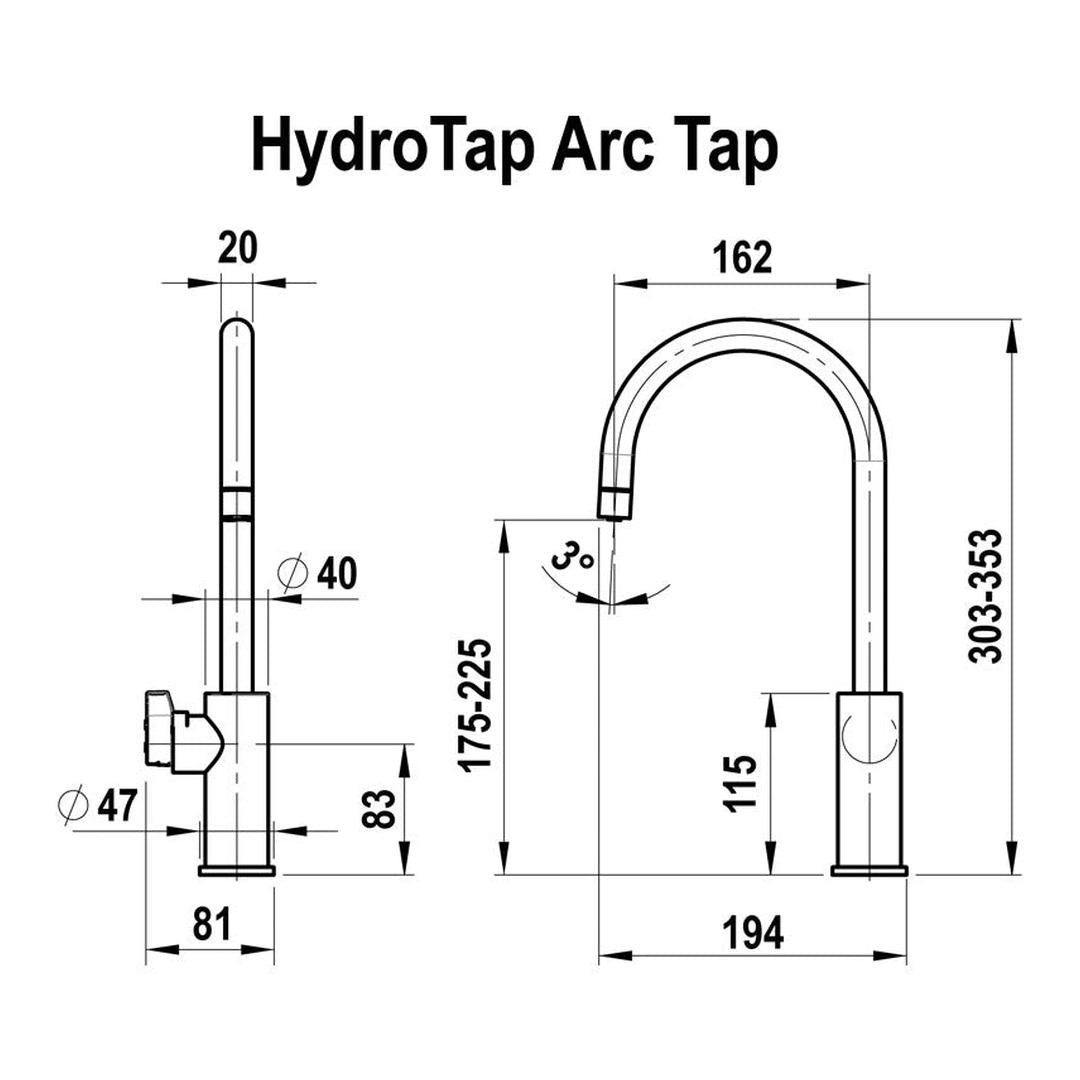

Spout Height 251 mm
Spout Reach 219 mm
Under Bench Unit 280 mm (W) × 313 mm (D) × 333 mm (H)
Product Colours Finishes Brushed Rose Gold

Technical Documents

Specification Sheet

View PDF
