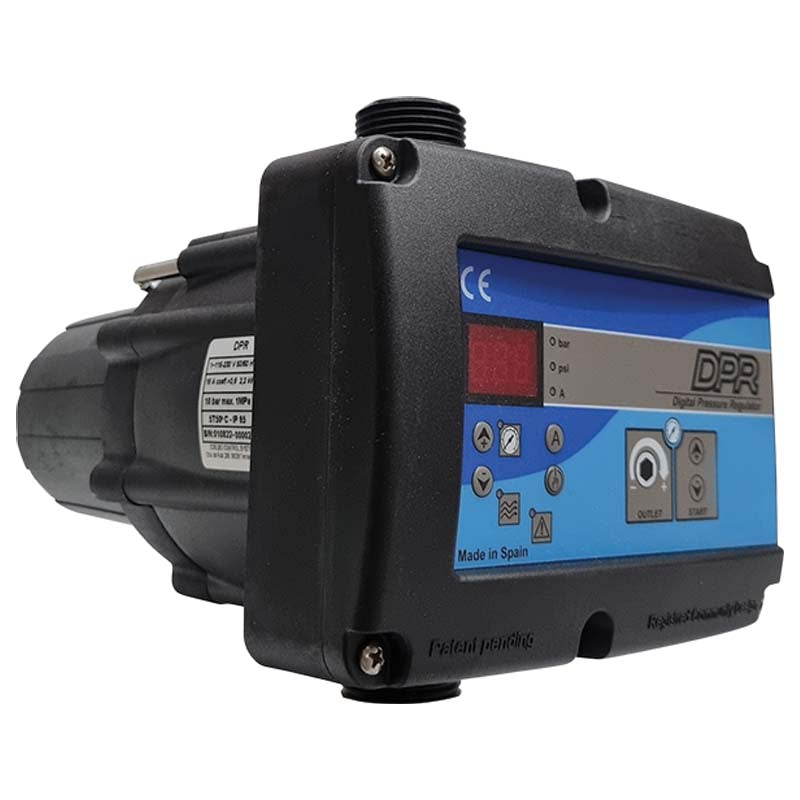

Reefe DPR25E.3PS 25mm Digital Pressure Regulator - 31643
SKU: 31643
$308 AUD $342 AUD
Reefe DPR25E.3PS 25mm Digital Pressure Regulator - 31643
  • Reefe DPR25E.3PS 25mm Digital Pressure Regulator - 31643

Compact device for automatic control and protection of electric pumps up to 2.2 kW (3 HP). Equipped with an innovative outlet pressure reducing/regulating system.

Features:

  • Manual outlet pressure regulation with integrated adjusting tool
  • Digital adjustment of starting pressure
  • Digital pressure gauge (bar or psi)
  • Inner pressure transmitter and flow sensor
  • Inner current sensor with instantaneous digital reading
  • ART function (Automatic Reset Test)
  • APR function (Anti-blocking Periodic Routine)
  • Flooding protection system
  • Stand-by mode
  • Operation data register and alarm counters
  • IP65 ingress protection
  • Connection – 10A 3 Pin Socket
  • Max Amps – 16 A
  • Max Power – 2.2 kW
  • Cut-In Pressure – 0.5 - 5.0 bar
  • Max Flow – 120 L/min
  • Inlet – 25mm
  • Outlet – 25mm
  • Ingress Protection – IP65
  • Warranty – 2 years

Technical Documents

Specification Sheet

View PDF
