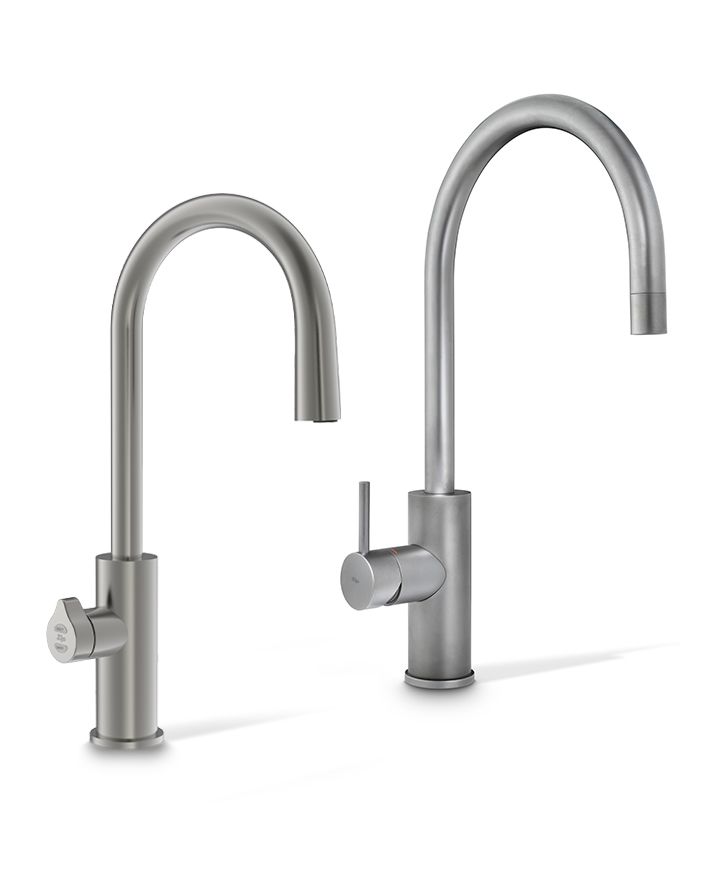

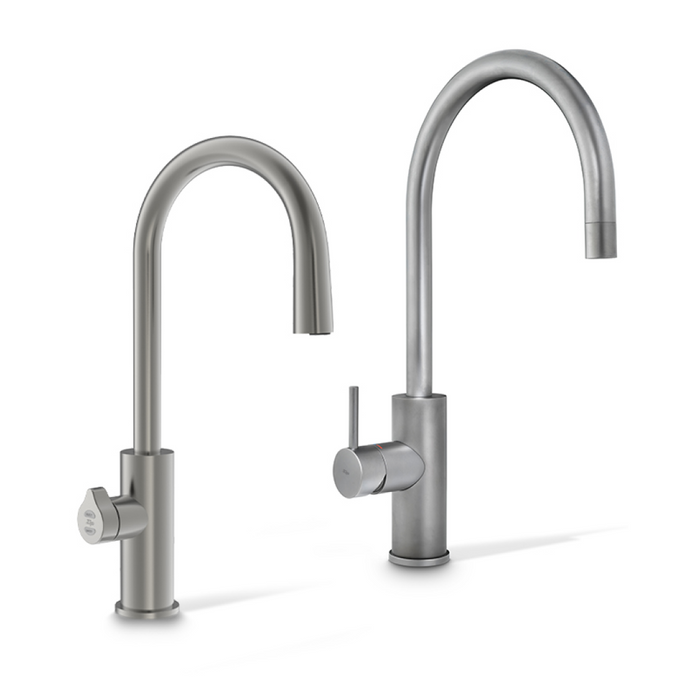

Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU
Model: HydroTap G5 Arc Plus · SKU: H5L824Z09AU
Commercial Tap
$10,881 AUD $12,322 AUD
Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU
1 of 4 images
  • Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU
  • Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU
  • Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU

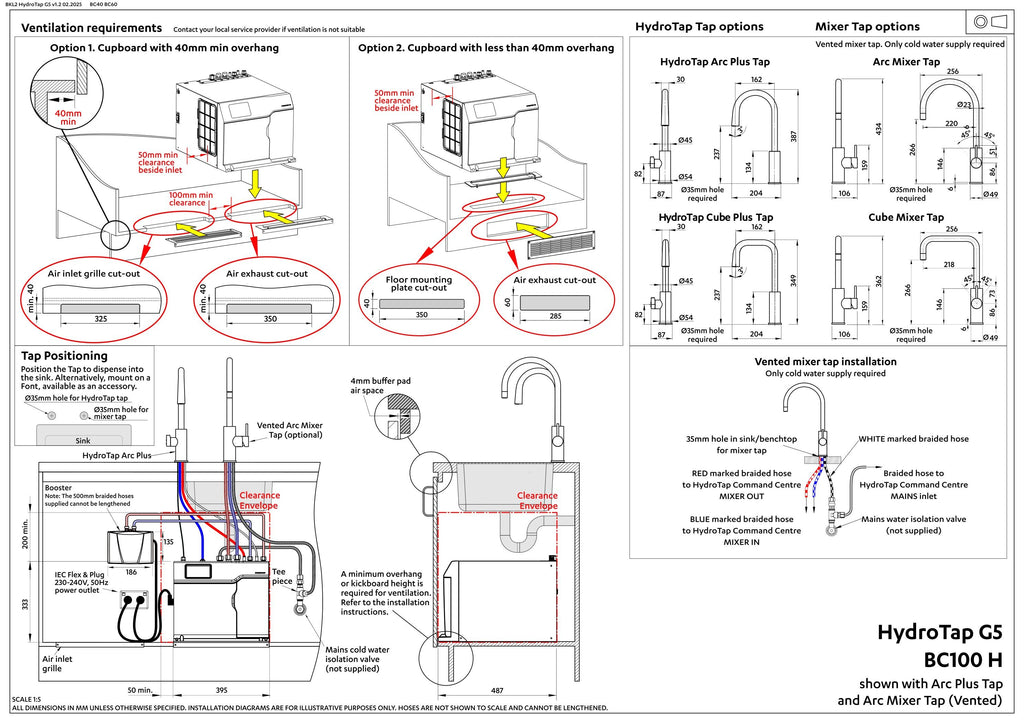

  • Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU — installation dimensions and clearances
Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU
Boiling, Chilled, Hot & Ambient

HydroTap G5 Arc Plus

  • 3yrparts & labour warranty
  • 395×487×333under bench unit (mm)
  • Hob Mountedinstallation

The Zip HydroTap Design Range 4-in-1 Boiling, Chilled, Filtered water plus Hot and Cold washing up water from two separate taps. This water system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, 0.2 micron water filtration, and a refillable CO2 cylinder. Easy to install integrated ventilation tray included.

Features

Water & filtration

  • Boiling, Chilled, Filtered, Hot and Cold water modes.
  • Boiling Cups per hour: 240
  • Chilled Cups per hour: 175

Design & use

  • Capacity: 61-100 people
  • WELS Rating - 5 Stars, 6L/Per Minute
  • 36 Month Appliance Warranty
  • 24 Month Tank Warranty
  • Power Supply: 2 x 10 Amp socket outlets

Will it fit?

The tap sits on the bench; the chiller unit lives in the cabinet below and needs clearance for airflow and servicing.

395 × 487 × 333 mm under bench unit (W × D × H)

5-year parts & labour when installed by a Zip Certified Installer for residential use. Otherwise 3 years parts & labour, plus 5 years on internal tanks.

Full specification sheet (PDF)

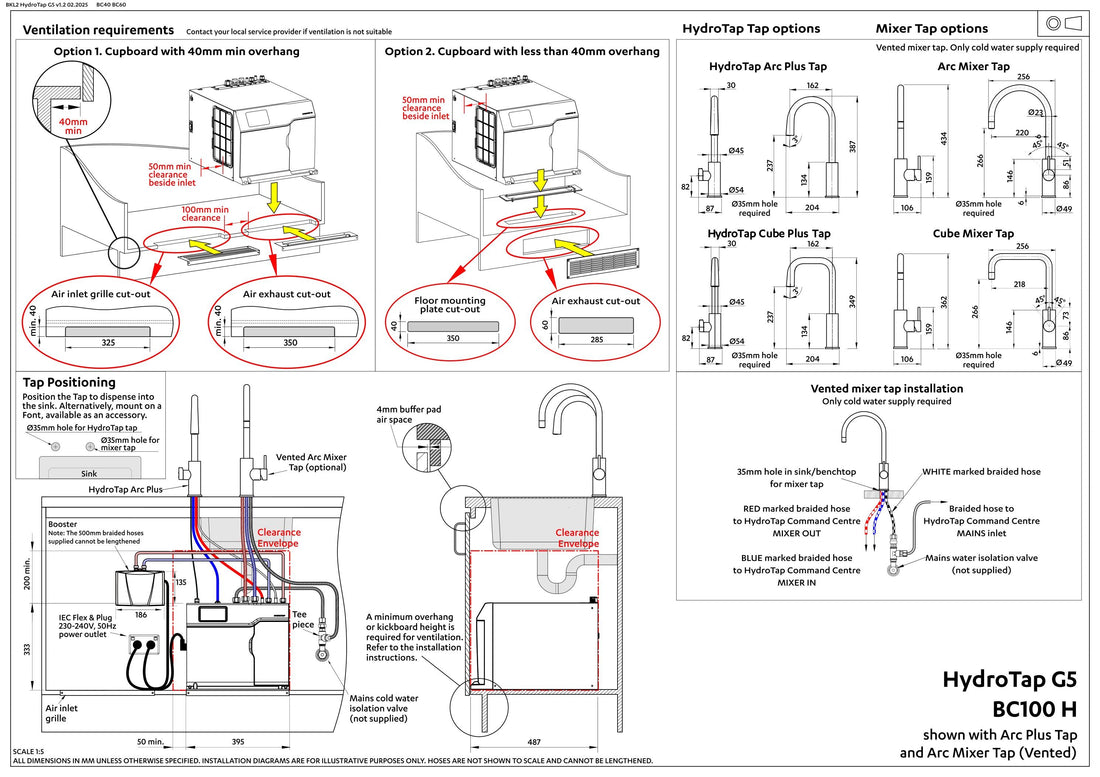

Zip Commercial HydroTap G5 BCHA100 4-IN-1 Arc Plus Tap with Arc Mixer - Gun Metal H5L824Z09AU installation layout and clearances
Installation layout — HydroTap G5 Arc Plus

Product Specifications

Application Location Kitchen
Installation Type Hob Mounted
Model Name HydroTap G5 Arc Plus
Product Type Filtered Water, Boiling, Chilled, Hot & Ambient Taps
Range HydroTap
Warranty Years 3 years
WELS Rating 5
Spout Height 251 mm
Spout Reach 230 mm
Under Bench Unit 395 mm (W) × 487 mm (D) × 333 mm (H)
Product Colours Finishes Gunmetal

Technical Documents

Specification Sheet

View PDF
