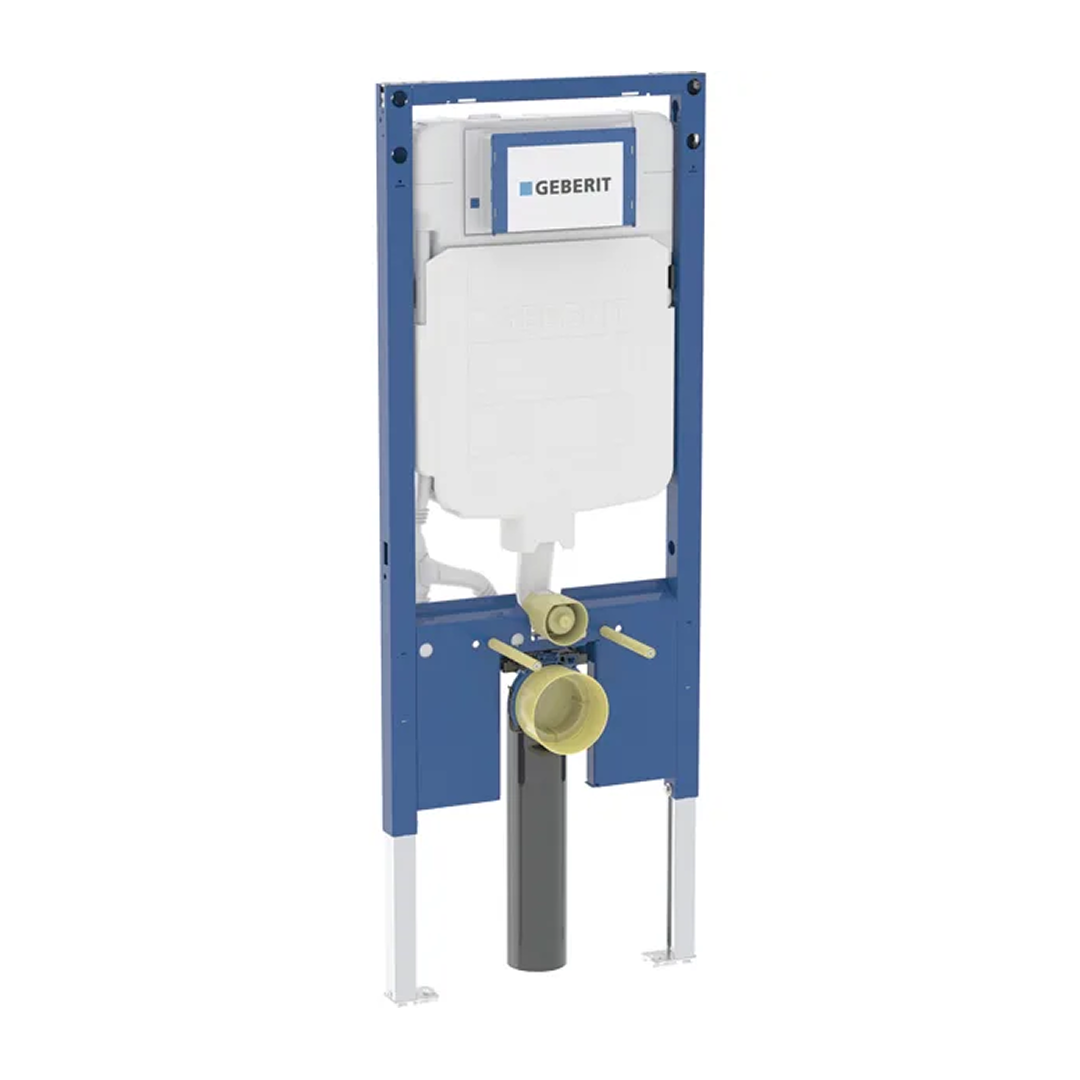

Features:

• For metal and wood frame walls

• For Geberit Duofix system walls

• For installation in part- or room-height prewalls

• For installation in room-height partition walls

• For floor constructions 0–25 cm

• For wall-hung WCs
• Statically self-supporting frame, protected against corrosion
  with powder coating

• Frame for wall-hung WCs with connection dimensions as per EN
  33 and projection up to 70 cm

• With pull-out plate for lateral fastening above the element on
  metal or wood profiles or on Geberit Duofix system studs

• Alternative fastening point for wall anchors

• Rotating foot plates, suitable for installation in U profiles UW 50
  and UW 75

• Foot plates that can be mounted in Geberit Duofix system rail
  without tools, without additional components

• Galvanised non-slip leg supports protected against corrosion
• Connection bend can be mounted without tools at different
  depths, adjustable range 80 mm

• Interrupted crossbar enables a front flush depth for the vertical
  outlet bend

• Waste connector bend, extended, for connection in floor

• Geberit Sigma concealed cistern 8 cm, fully insulated against
  condensation

• Cistern fulfils standard requirements in accordance with AS
  1172.2:2004

• For front actuation, suitable for single, dual and stop-and-go
  flushes

• Immediate post flush possible with factory setting

• Tool-free installation and maintenance work on concealed
  cistern

• Water supply connection on the top left

• Protection box for service opening, can be cut to length,
  protects against moisture and dirt

• With conduit pipe for feed pipe for Geberit AquaClean shower
  toilets and for connection cable

• Fastening option for electrical connection
