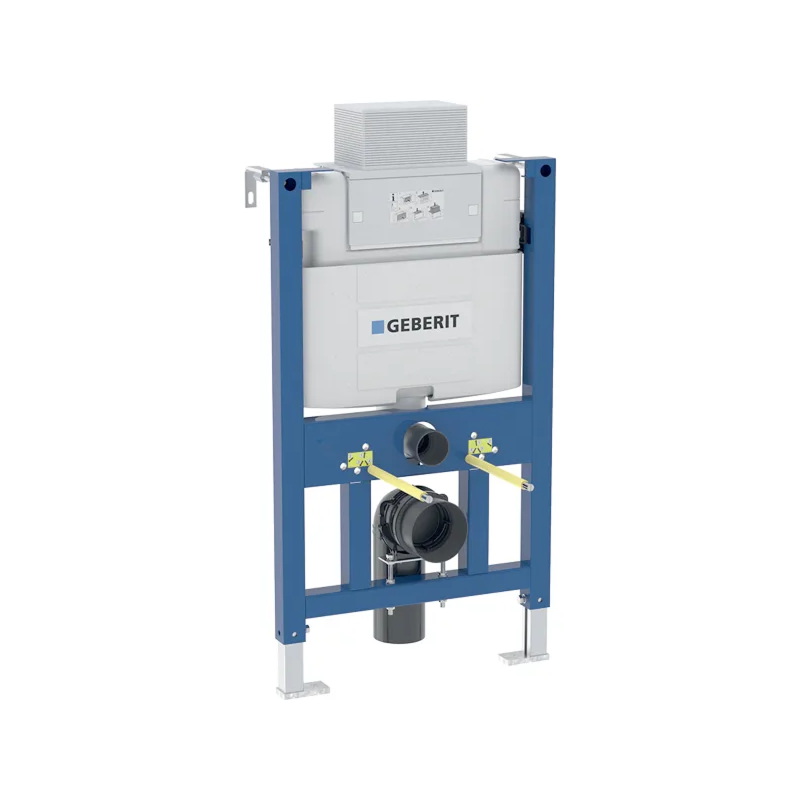

Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1

Model: SKU: 224.049.00.1
$829 AUD
Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1
1 of 4 images
  • Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1
  • Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1
  • Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1
  • Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1

Features:

  • Statically self-supporting frame, protected against corrosion with powder coating
  • Frame top open
  • Frame with ø9mm drilling holes for fastening in wood frame construction
  • Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
  • Galvanized feet
  • Feet adjustable: 0-20cm
  • Connection bend can be mounted without tools
  • Concealed cistern with top or front actuation
  • Immediate post flush possible with factory setting
  • Water supply connection on the left
  • Flow pressure: 10-1000 kPa
  • Maximum Operating Water Temperature: 25°C

Technical Documents

Specification Sheet

View PDF
Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1

Geberit Duofix Frame with Alpha Concealed Cistern - 224.049.00.1

$829 AUD

SKU:224.049.00.1
In Stock

Enter postcode to check stock availability and delivery time

Download Spec Sheet
